Nacházíte se na stránce: Nabídka » Prodej a pronájem » Prodej » Projektory » XGA rozlišení (1024x 768 pixelů)

XGA rozlišení (1024x 768 pixelů)


Světelný výkon
(ANSI lm)

Reálné rozlišení/

Komprese rozlišení

1024x 768/

1280x 1024 800 TV řádků

Technologie zobrazení DLPTM 5 segment. filtr /4: 3!
Velikost displeje 0.7"
Projekční vzdálenost pro obraz se základnou 2 m 2,9- 4,33m
Vzdálenost (min-max) 1,27- 7,62m
Kontrast 2000: 1
Vstupy 1x HDMI , 1x RGB(analog), 3x video (cinch, S-VHS, component )
Druh lampy UHP 230W
Životnost lampy 3- 5000 hod
Cena lampy 11900

manuální zoom, focus, VK: +-15°

Interní audio 10W mono
Váha (kg) 3,6
Zvláštní vybavení

Hlučnost pouze 29 dB!

1xRGB OUT, RJ-45, S 232, zatemnění obrazu, 12V spoušt. výstup, brašna

cena bez DPH 38900

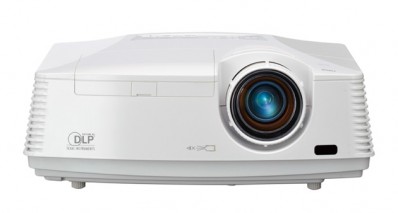

New High Brightness Portable Projector

The XD600U is a high brightness and high contrast level projector for presentations in large meeting rooms and conference halls. Equipped with a specially calibrated lens this projector is designed for high-power projection. Projection distances from 1.7 to 2.6m are possible using a 60-inch screen, and brilliant, crystal-clear images are assured even when projection distance is short. Experience the impact and allure of 3D images with Mitsubishi's XD600U.

3D ready logo

A high-volume, 10W speaker is built-in, eliminating the need for an external speaker.
Using the "Audio Mix*" feature and wireless microphone (sold separately by others), the presenter's voice is reproduced loud and clear in real-time.

10W speaker

Loud 10W built-in speaker + Audio Mix

(*): Only compatible with stereo mini-jack, not compatible with RCA jacks or HDMI.

Display technology 0.7" 1-chip DMD
Resolution 1024 × 768 (total 786,432 pixels)
Brightness 4500lm
Contrast ratio 2000 : 1
Picture size 40" - 300"
Throw ratio 1.4 - 2.1
Source lamp 230W (shut-off time 5000hr*2) in low mode,
280W (shut-off time 3000hr*2) in standard mode
PC compatibility 640 × 480 - 1280 × 1024,
True: 1024 × 768, sync on green available
Video compatibility NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60 Component video: 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i (1125i 60Hz), 1080i (1125i 50Hz)
Input terminals RGB: mini D-sub 15pin × 2
Video: RCA × 1, S-VIDEO × 1
Digital: HDMI × 1
Audio: stereo mini jack (ø3.5mm) × 2, RCA jack (L/R) × 1
Output terminals RGB: mini D-sub 15pin × 1
Audio: stereo mini jack (ø3.5mm) × 1
Communication terminal RS-232C: mini DIN 8pin × 1,
LAN: RJ-45 × 1
Audio speaker 10W mono
Dimensions (W × H × D) 345 × 129 × 270 mm / 13.6 × 5.1 × 10.6 inch
Weight 3.6kg / 7.9lbs
Power requirements AC 100-240V, 50/60Hz
Optional lamp VLT-XD600LP

  • *Compliance with ISO21118-2005
  • *All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.
  • (*2): It's an estimated life time and the lamp is to be shut off upon the arrival. And it's not the time specified in the warranty.

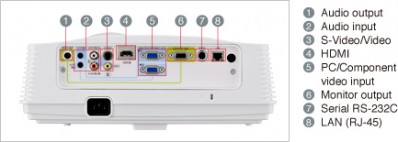

Input and Output Terminals
Input and Output Terminals
Screen Size and Projection Distance

Side view

Screen Size and Projection Distance

Click here to open the throw distance calculator


Cena bez DPH: 38900,- Kč
