Nacházíte se na stránce: Nabídka » Prodej a pronájem » Prodej » Projektory » XGA rozlišení (1024x 768 pixelů)

XGA rozlišení (1024x 768 pixelů)


Světelný výkon
(ANSI lm)

Reálné rozlišení/

Komprese rozlišení

1024x 768/

1280 x 1024 , 540 TV řádků

Technologie zobrazení DMD, 6- segmentový filtr
Velikost displeje 0,55“
Projekční vzdálenost pro obraz se základnou 2 m 3,24- 3,92m
Vzdálenost (min-max) 1,6 - 8,3m
Kontrast 2000 : 1


2xRGB(analog,), 3x video, 2x AV cinch

Druh lampy UHP 230W
Životnost lampy 3- 6000 hod
Cena lampy 11900
Optika manuální zoom, focus, VK:+-15o
Interní audio 10W mono
Váha (kg) 3,3
Zvláštní vybavení 1xRGB OUT, RJ-45, freeze, zatemnění obrazu, RS-232, brašna
cena bez DPH 23900

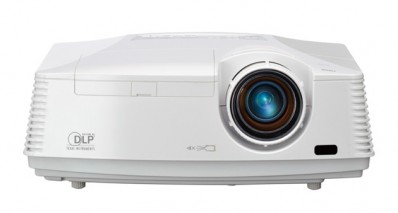

Mobile Multimedia Projector

The XD280U provides a complete presentation solution. A 10-watt audio speaker and variable audio output enables users to project both visual and audio content effectively. Furthermore subtitles can be used to enforce an audio presentation or as an aid for foreign language lessons or international meetings by utilizing the ‘closed caption' function.

Producing vibrant images and crystal clear text the XD280U utilizes XGA resolution (1024 x 768), a high contrast ratio of 2000:1 and feature 3000 ANSI lumens of brightness. BrilliantColourTM technology optimizes the colour reproduction and uniformity and a 6 segment colour wheel also improves the vitality of colours by offering a wider colour spectrum

Quick Menu
or improved operation ease, the tool bar has seven main menus and one custom menu. Switching to the sub-menu allows the selection of more specific operations.

Quick menu


Display Technology 0.55" 1-Chip DMD
Resolution 1024 × 768 (Total 786,432 pixels)
Brightness 3000lm
Contrast Ratio 2000 : 1
Picture Size 40" - 300"
Throw Ratio 1.6 - 2.0
Source Lamp 190W (Shut-Off Time 6000hr*2) in Low Mode,
230W (Shut-Off Time 3000hr*2) in Standard Mode
PC Compatibility 640 × 480 - 1280 × 1024,
True: 1024 × 768, Sync on Green available
Video Compatibility NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60 Component Video; 480i/p (525i/p), 576i/p (625i/p), 720p (750p), 1080i (1125i 60Hz), 1080i (1125i 50Hz)
Input Terminals RGB: mini D-sub 15pin × 2
Video: RCA × 1, S-VIDEO × 1
Digital: HDMI × 1
Audio: Stereo mini jack (ø3.5mm) × 2, RCA jack (L/R) × 1
Output Terminals RGB: mini D-sub 15pin × 1
Audio: Stereo mini jack (ø3.5mm) × 1
Communication Terminal RS-232C: mini DIN 8pin × 1,
LAN: RJ-45 × 1
Audio Speaker 10W Mono
Dimensions (W × H × D) 325 × 118 × 251 mm / 12.6 × 4.1 × 9.3 inch
Weight 3.3kg / 7.3lbs
Power Requirements AC 100-240V, 50/60Hz
Optional Lamp VLT-XD280LP
  • *Compliance with ISO21118-2005
  • *All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.
  • (*2): It's an estimated life time and the lamp is to be shut off upon the arrival. And it's not the time specified in the warranty.

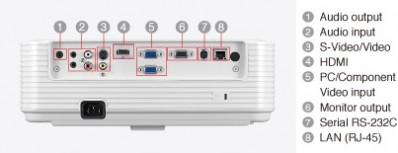

Input and Output Terminals
Input and Output Terminals
Screen Size and Projection Distance

As seen from the side.

Screen Size and Projection Distance

Click here to open the throw distance calculator

Cena bez DPH: 23900,- Kč
