XGA rozlišení (1024x 768 pixelů)

MITSUBISHI XL6500U

Světelný výkon (ANSI lm)	5000
Komprese rozlišení	1600 x 1200 , 600 TV řádků
Technologie zobrazení	3 x polysilicon ( micro lens )
Velikost displeje	3 x 1,3"
Projekční vzdálenost pro obraz se základnou 2 m	3,84 - 4,86 m
Vzdálenost (min-max)	1,5 - 11,93 m
Kontrast	1000 : 1
Vstupy	3x RGB (analog, DVI, BNC), 3x video, 2x AV cinch
Druh lampy	SHP 2750 W
Životnost lampy	2- 4000 hod
Cena lampy	19900
Optika	motorový zoom, focus, vertikální a horizontální lens shift, HK: +-25^o, VK: +-35^o
Interní audio	10W mono
Váha (kg)	9,8
Zvláštní vybavení	1xRGB OUT, USB, RS 232,RJ-45, Laser, digit.zoom , freeze, zatemn. obrazu, 2x PiP, hlučnost pouze 29 dB !
cena bez DPH	89900

XL6500U

High Brightness Installation Multimedia Projector with optional lenses

The XL6500U from Mitsubishi Electric is a high-end, 1024 x 768 resolution projector for use in large meeting rooms and conference halls. The model features six different viewing modes, depending on user preferences, and automatically analyses input to determine the optimum screen size, from widescreen to 4:3.

The XL6500U can show separate images from different sources together. Its 5000 lumens of brightness, 1000:1 contrast ratio and 3D luminance/chrominance processing enable vivid pictures, whatever the room size. Moreover, the model's sRGB color technology enables accurate and uniform color reproduction.

The XL6500U's RJ45 terminal allows remote LAN control, including diagnostics as well as projection. The projector runs at a quiet 29dBA in low mode.

A wide variety of optional lenses are available to fit any user requirement:

OL-X500FR: wide-angle f=22mm

OL-X500SZ: short-zoom f=37~44mm

OL-X500LZ: telezoom f=64~90mm

OL-X500TZ: telezoom f=93~140mm

(The XL6500U comes with the Standard lens, f=51~64mm)

Downloads

XL6500 DXF

Links
	Throw Distance Calculator

Specifications

Display technology	1.3" TFT Poly silicon x 3
Resolution	1024 x 768 dots
Brightness	5000lm
Contrast	1000 : 1
Zoom / focus	Power (zoom raito : 1.3 : 1)
Picture size	60" ~ 300"
Source lamp	220W (Shut off Time 4000Hrs2) in Low Mode, 275W (Shut off Time 2000Hrs2) in Standard Mode
Computer compatibility	640 x 400 ~ 1600 x 1200, True ; 1024 x 768, Sync on green available
Video compatibility	NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60 Component Video ; 480i/p (525i/p), 576i/p (625i/p), 720p (750p 50/60Hz), 1080i (1125i 50/60Hz), 1080p (1125p 50/60Hz), SCART (RGB + 1V sync, only Mini D-SUB 15pin)

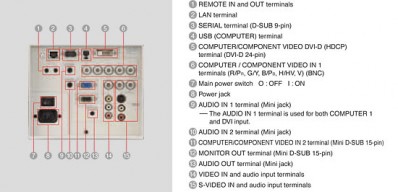

Input terminals	PC ; 5BNC x 1, Mini D-SUB 15pin x 1, DVI-D (with HDCP) x 1, PC Audio ; Stereo mini jack (ø3.5mm) x 2, Video (1) ; RCA x 1 or BNC x 1, Video (2) ; S-VIDEO (4pin) x 1 or S-VIDEO Y/C (BNC), Video Audio ; RCA (L/R) x 2
Output terminals	RGB : mini D-SUB 15pin x 1, Audio ; Stereo mini jack (ø3.5mm) x 1
Communication terminals	LAN (RJ-45) x 1 (Projector control), RS-232C (D-SUB 9pin) x 1, USB x 1 (Mouse control), Wired remote (IN) ; Stereo mini jack (ø3.5mm) x 1, Wired remote (OUT) ; Stereo mini jack (ø3.5mm) x 1
Audio speaker	10W mono
Dimensions (W x H x D)	443 x 207 x 434mm / 17.4 x 8.1 x 17.1 inch (including terminal cover)
Weight	9.8kg / 21.6lbs (excluding terminal cover)
Power supply	AC100 ~ 240V, 50 / 60Hz

*Compliance with ISO21118-2005

	*" BrightEra" and are trademarks of Sony corporation.
	* Windows is a registered trademark of Microsoft Corporation. * Macintosh is a registered trademark of Apple Computer Inc. * SXGA, XGA, SVGA, WXGA are registered trademarks of IBM Corporation. * All brand names and product names are trademarks, registered trademarks or trade names of their respective holders.

(*2): It's an estimated life time and the lamp is to be shut off upon the arrival. And it's not the time specified in the warranty.

Optional lenses

Long - Throw Zoom Lens

OL - X500LZ

Model Name OL - X500LZ

F number 2.5 - 3.2

f (mm) 64 - 90

Throw ratio 2.4 - 3.3

Off - set axis 19 (up) : 1 (down)

Zoom / Focus Manual (1.4 : 1)

Weight 1.7kg / 3.8lbs

Length 204(max)

Lens size ø84

Long - Throw Zoom Lens

OL - X500TZ

Model Name OL - X500TZ

F number 2.5 - 3.4

f (mm) 93 - 140

Throw ratio 3.4 - 5.2

Off - set axis 19 (up) : 1 (down)

Zoom / Focus Manual (1.5 : 1)

Weight 1.7kg / 3.8lbs

Length 205(max)

Lens size ø84

Short - Throw Zoom Lens

OL - X500SZ

Model Name OL - X500SZ

F number 2.0 - 2.3

f (mm) 37 - 44

Throw ratio 1.3 - 1.6

Off - set axis 19 (up) : 1 (down)

Zoom / Focus Power (1.2 : 1)

Weight 1.4kg / 3.1lbs

Length 177(max)

Lens size ø84

Rear Projection Short Throw Lens (on axis)

OL - X500FR/OL - X500FR(F)

Model Name OL - X500FR/OL - X500FR(F)

F number 2.5

f (mm) 22

Throw ratio 0.8

Off - set axis 1 : 1 (On axis)

Zoom / Focus Manual

Weight 1.7kg / 3.8lbs

Length 174(max)

Lens size ø123.6

Cena bez DPH: 89900,- Kč
